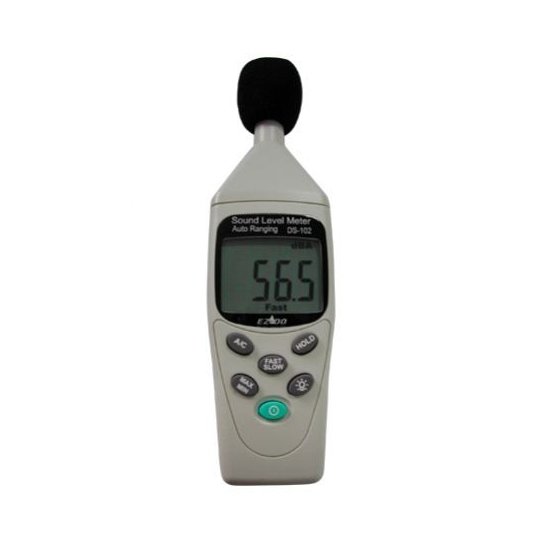

Portable Sound Level Meter, Auto Ranging – EZDO | DS-102
The EZDO DS-102 is a professional-grade portable sound level meter designed for accurate noise measurement in industrial, environmental, and laboratory settings. The instrument auto-ranges across three overlapping measurement ranges covering 30 to 130 dB, eliminating the need for manual range switching during surveys. A and C frequency weighting modes allow compliance with different occupational health and environmental noise standards. Both fast and slow dynamic characteristics are selectable to suit transient noise events or steady-state background measurements respectively.
A 1/2-inch electret condenser microphone provides stable and reliable acoustic sensing, and Min/Max storage with recall supports level logging during extended monitoring periods. The analogue DC output at 10mV/dB enables connection to chart recorders or external data acquisition systems.
Specifications
| Parameter | Specification |
|---|---|
| Model | DS-102 |
| Measurement | Sound Level |
| Range | Lo: 30–80 dB / Med: 50–100 dB / Hi: 80–130 dB |
| Accuracy | ±1.5 dB (ref 94 dB @ 1 kHz) |
| Resolution | 0.1 dB |
| Dynamic Range | 50 dB |
| Frequency Range | 20 Hz – 8 kHz |
| Frequency Weighting | A, C |
| Dynamic Characteristics | Fast & Slow |
| Microphone | 1/2-inch electret condenser |
| Analogue DC Output | 10 mV/dB, approx. 100Ω impedance |
| Power | DC 9V |
| Dimensions | 280×80×32 mm |
| Weight | 290 g (with battery) |
| Brand | EZDO |
