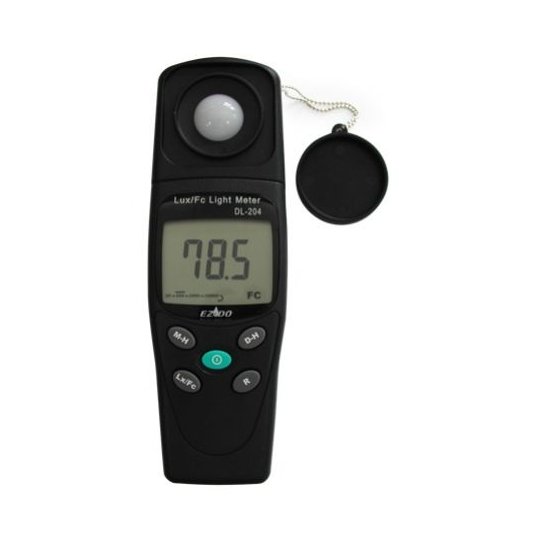

Portable Lux / Footcandle Light Meter – EZDO | DL-204
The EZDO DL-204 is a handheld light meter designed for accurate measurement of illumination intensity in both Lux and Footcandle units. Its silicon photodiode and filter sensor with cosine angular correction ensures reliable readings across all visible light sources, not just standard incandescent lamps. The four auto-ranging measurement ranges cover from dim interiors through to brightly lit industrial or outdoor environments.
Data hold, max hold, and zero adjustment functions support systematic lighting surveys, and the compact ergonomic housing makes it practical for regular field use. Sampling at 2.5 times per second provides a responsive, stable display. Standard accessories include a 9V battery, cloth case, instruction manual, and gift box.
Specifications
| Parameter | Specification |
|---|---|
| Model | DL-204 |
| Measurement | Illuminance (Lux / Footcandles) |
| Range (Lux) | 200 / 2000 / 20,000 / 200,000 Lux |
| Range (FC) | 20 / 200 / 2000 / 20,000 Footcandles |
| Accuracy | ±3% (standard incandescent 2856K); ±8% (other visible light) |
| Sensor | Silicon photodiode and filter |
| Cosine Correction | Yes |
| Sampling Rate | 2.5 times/sec |
| Angle Deviation | 30°: ±2%; 60°: ±6%; 80°: ±25% |
| Power | DC 9V |
| Dimensions | 185×55×38 mm |
| Weight | 250 g (with battery) |
| Brand | EZDO |
