Description

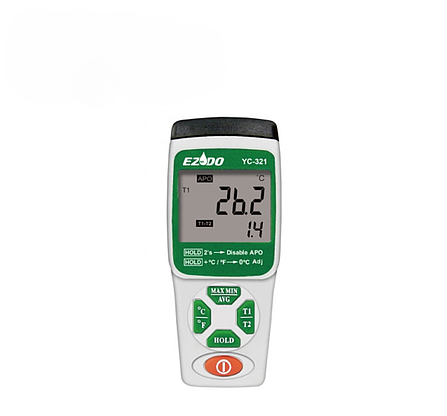

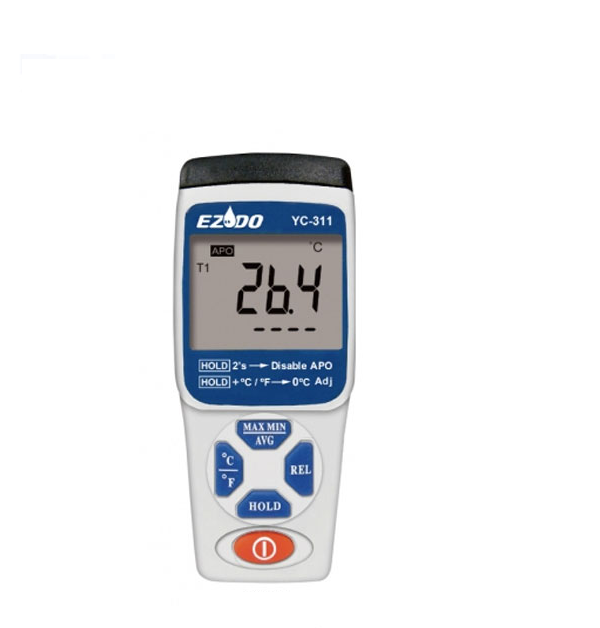

Portable K-Type Thermocouple Thermometer – EZDO | YC-311 / YC-321
The EZDO YC-311 and YC-321 portable K-type thermocouple thermometers are designed for wide-range temperature measurement in industrial, laboratory, HVAC, and research applications. The K-type thermocouple sensor covers an exceptional measurement range from -200°C to +1372°C, accommodating everything from cryogenic to high-temperature furnace measurements in a single handheld instrument.
The microcontroller-based 4-digit LCD design delivers high accuracy and stability with a reading update rate of 4 times per second. Max, Min, and Avg values can be displayed simultaneously with the live reading, supporting both peak capture and averaging workflows. A data hold function freezes the current display, and the REL (relative) function enables differential measurements from a reference point. Automatic power-off with disable option, 0°C digitized correction, and selectable °C/°F units complete the practical feature set. The YC-321 adds a second thermocouple input, enabling simultaneous T1 and T2 measurement and T1-T2 differential display — particularly useful for heat transfer studies, gradient measurements, and comparative temperature work.
Specifications
| Parameter | Specification |
|---|---|
| Temperature Range | -200°C to +1372°C (-328°F to +2501°F) |
| Resolution | 0.1 (≤999.9) / 1 (≥1000) |
| Reading Update | 1 time/sec |
| Accuracy (23°C±5°C) | ±0.1% reading +0.5°C (1°F) |
| Accuracy Below -100°C | ±(0.2% rdg + 1°C) |
| Temperature Scale | ITS-90 |
| Display | 4-digit LCD |
| Functions | °C/°F, Max/Min/Avg, Hold, Rel, APO, 0°C Adj |
| Power | 9V battery |
| Accessories | K-type simple probe, 9V battery, instruction manual, gift box |
| Brand | EZDO |

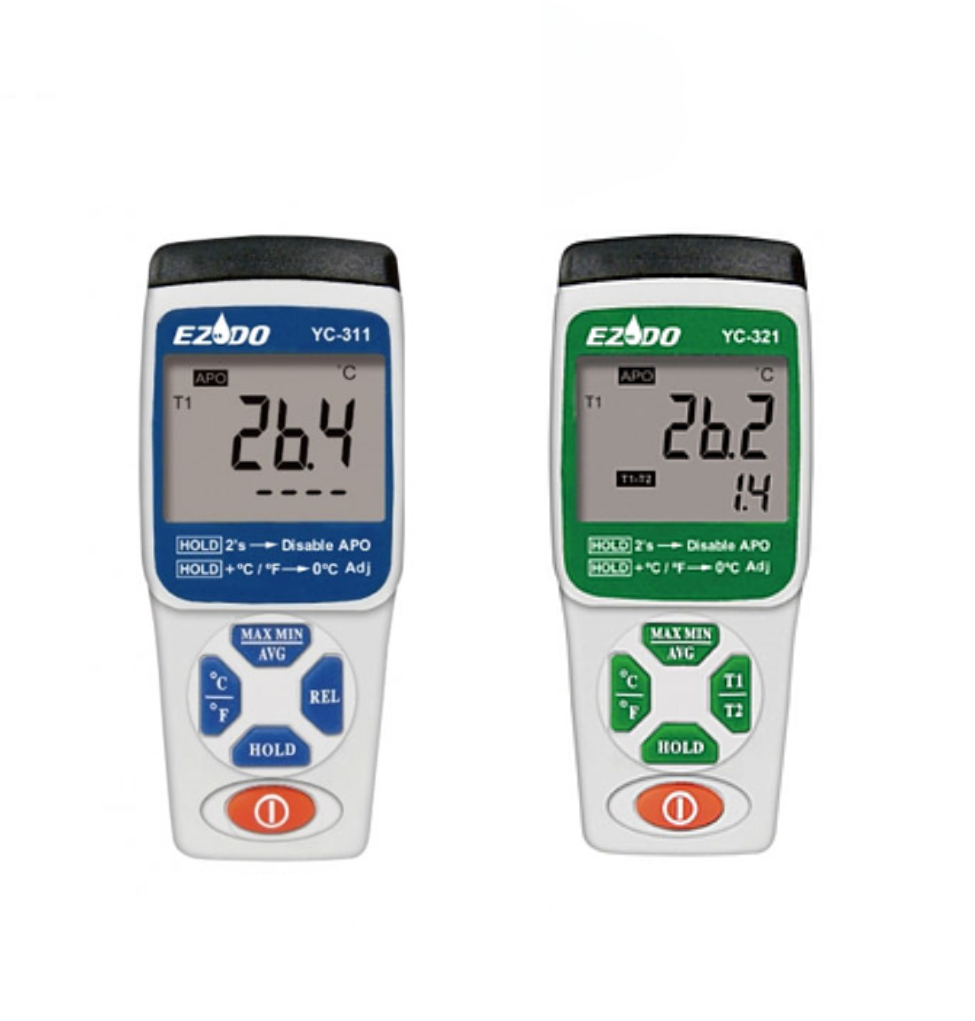

Available Variants
| Model | Inputs |
|---|---|
| YC-311 | Single K-type thermocouple input |
| YC-321 | Dual K-type thermocouple inputs (T1, T2, T1-T2) |
