PVDF Syringe Filters, Hydrophilic & Hydrophobic – Membrane Solutions | Various Pore Sizes & Diameters

PVDF Syringe Filters, Hydrophilic & Hydrophobic – Membrane Solutions | Various Pore Sizes & Diameters

SKU N/A Category

Description

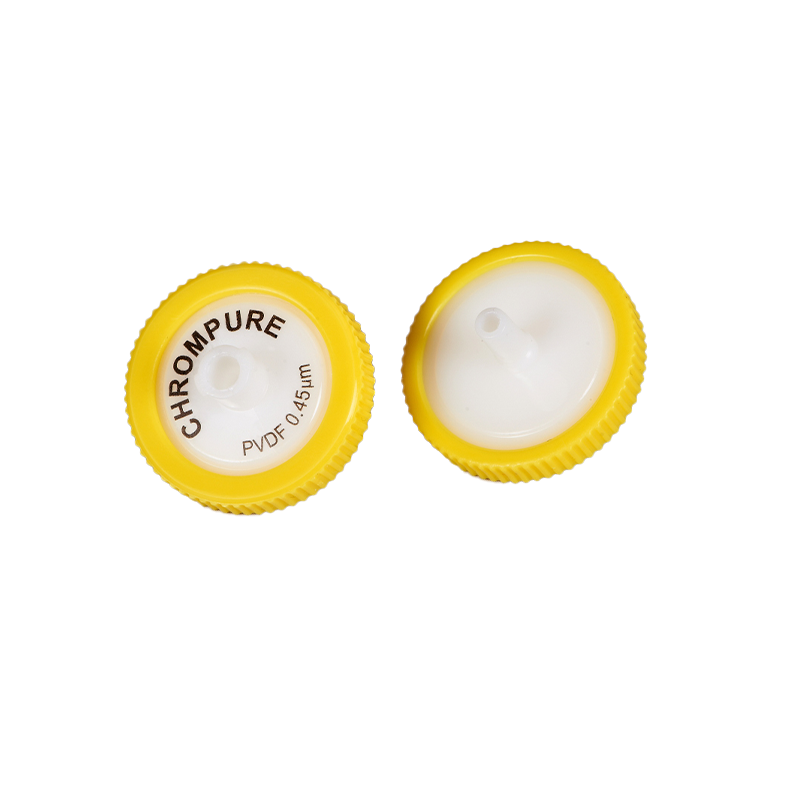

PVDF Syringe Filters, Hydrophilic & Hydrophobic – Membrane Solutions | Various Pore Sizes & Diameters

PVDF syringe filters are chosen for analytical and biological applications where minimal interaction between the membrane and sample components is critical. PVDF’s exceptionally low protein binding makes it the preferred membrane for protein solution filtration, enzyme clarification, and biological fluid sample preparation where recovery of the analyte must be maximised. Its chemical resistance to mild organic solvents, aqueous buffers, and non-aggressive chemicals supports use in HPLC sample preparation, microbiological filtration, and pharmaceutical QC workflows.

Two wettability variants are available. Hydrophobic PVDF filters are suitable for organic solvents and non-aqueous applications, while hydrophilic PVDF filters have been surface-treated for direct use with aqueous samples without pre-wetting — combining the chemical inertness of PVDF with the convenience of a hydrophilic membrane. Pore sizes of 0.1 µm, 0.22 µm, and 0.45 µm cover sterilising-grade filtration, fine particle removal, and general clarification respectively. Diameters range from 4 mm for micro-volume samples to 33 mm for larger volume filtration needs. Housing material is PP across all variants except the 33 mm Bepure series which uses MBS. A sterile option (SFPVDF013022S) is available in the 13 mm / 0.22 µm configuration for aseptic applications. Connections throughout are Female Luer Lock inlet and Male Luer slip outlet.

Specifications (Common)

Parameter Specification
Filter Medium PVDF (Polyvinylidene fluoride)
Connections Female Luer Lock inlet / Male Luer slip outlet
Sterile No (except SFPVDF013022S)

Available Variants

Catalog No. Pore Size (µm) Diameter (mm) Wettability Prefilter Housing Holdup Vol. (µl) Throughput (ml) Brand
SFPVDF013022NG 0.22 13 Hydrophobic Glass fiber PP <20 <10 SimplePure
SFPVDF013022S 0.22 13 Hydrophobic PP PP <10 <10 SimplePure (Sterile)
SFPVDF013045NG 0.45 13 Hydrophobic Glass fiber PP <20 <10 SimplePure
SFPVDF025022NG 0.22 25 Hydrophobic Glass fiber PP <100 <100 SimplePure
SFPVDF025045NG 0.45 25 Hydrophobic Glass fiber PP <100 <100 SimplePure
SFPVDF013022NB 0.22 13 Hydrophobic PP PP <20 <10 SimplePure
SFPVDF013045NB 0.45 13 Hydrophobic PP PP <20 <10 SimplePure
SFPVDF025022NB 0.22 25 Hydrophobic PP PP <100 <100 SimplePure
SFPVDF025045NB 0.45 25 Hydrophobic PP PP <100 <100 SimplePure
SFPVDF013022NL 0.22 13 Hydrophilic PP PP <20 <10 SimplePure
SFPVDF013045NL 0.45 13 Hydrophilic PP PP <20 <10 SimplePure
SFPVDF013010NL 0.1 13 Hydrophilic PP PP <20 <10 SimplePure
SFPVDF025022NL 0.22 25 Hydrophilic PP PP <100 <100 SimplePure
SFPVDF025045NL 0.45 25 Hydrophilic PP PP <100 <100 SimplePure
SFPVDF004022NL 0.22 4 Hydrophilic PP PP <1 <1 SimplePure
SFPVDF004045NL 0.45 4 Hydrophilic PP PP <1 <1 SimplePure
SFPVDF013022NI 0.22 13 Hydrophobic PP PP <10 <10 iPure
SFPVDF013045NI 0.45 13 Hydrophobic PP PP <10 <10 iPure
SFPVDF025022NI 0.22 25 Hydrophobic PP PP <100 <100 iPure
SFPVDF025045NI 0.45 25 Hydrophobic PP PP <100 <100 iPure
SFPVDF030022NI 0.22 30 Hydrophobic PP PP <120 <200 iPure
SFPVDF030045NI 0.45 30 Hydrophobic PP PP <120 <200 iPure
SFPVDF013022NLI 0.22 13 Hydrophilic PP PP <10 <10 iPure
SFPVDF013045NLI 0.45 13 Hydrophilic PP PP <10 <10 iPure
SFPVDF025022NLI 0.22 25 Hydrophilic PP PP <100 <100 iPure
SFPVDF025045NLI 0.45 25 Hydrophilic PP PP <100 <100 iPure
SFPVDF030022NLI 0.22 30 Hydrophilic PP PP <120 <200 iPure
SFPVDF030045NLI 0.45 30 Hydrophilic PP PP <120 <200 iPure
SFPVDF033022NL 0.22 33 Hydrophilic Glass fiber MBS <110 <110 Bepure
SFPVDF033045NL 0.45 33 Hydrophilic Glass fiber MBS <110 <110 Bepure
SFPVDF030022NL 0.22 30 Hydrophilic Glass fiber PP <200 <100 SuperPure
SFPVDF030045NL 0.45 30 Hydrophilic Glass fiber PP <200 <100 SuperPure
SFPVDF013022NLA 0.22 13 Hydrophilic None PP <10 <10 AllPure
SFPVDF013045NLA 0.45 13 Hydrophilic None PP <10 <10 AllPure
SFPVDF013010NLA 0.1 13 Hydrophilic None PP <10 <10 AllPure
SFPVDF025022NLA 0.22 25 Hydrophilic None PP <100 <50 AllPure
SFPVDF025045NLA 0.45 25 Hydrophilic None PP <100 <50 AllPure
SFPVDF033022NLA 0.22 33 Hydrophilic None PP <120 <100 AllPure
SFPVDF033045NLA 0.45 33

Additional information

Catalog No.

SFPVDF013022NG, SFPVDF013022S, SFPVDF013045NG, SFPVDF025022NG, SFPVDF025045NG, SFPVDF013022NB, SFPVDF013045NB, SFPVDF025022NB, SFPVDF025045NB, SFPVDF013022NL, SFPVDF013045NL, SFPVDF013010NL, SFPVDF025022NL, SFPVDF025045NL, SFPVDF004022NL, SFPVDF004045NL, SFPVDF013022NI, SFPVDF013045NI, SFPVDF025022NI, SFPVDF025045NI, SFPVDF030022NI, SFPVDF030045NI, SFPVDF013022NLI, SFPVDF013045NLI, SFPVDF025022NLI, SFPVDF025045NLI, SFPVDF030022NLI, SFPVDF030045NLI, SFPVDF033022NL, SFPVDF033045NL, SFPVDF030022NL, SFPVDF030045NL, SFPVDF013022NLA, SFPVDF013045NLA, SFPVDF013010NLA, SFPVDF025022NLA, SFPVDF025045NLA, SFPVDF033022NLA, SFPVDF033045NLA
