Thermostatic Water Bath, Stretching Inner Chamber, PID Controller – Faithful | DK-2000-IIIL
The Faithful DK-2000-IIIL thermostatic water bath uses natural water convection heating to deliver stable and uniform temperature conditions across its stainless steel inner chamber. The stretching inner chamber design allows flexible configuration to accommodate different vessel formats and multi-sample workflows. Suitable for biological sample conditioning, laboratory reagent warming, viscosity testing, and auxiliary heating operations in research, analytical, and educational laboratories.
Temperature is controlled by a PID controller with touch button setting and a CU50 sensor, displaying measuring temperature on the upper three-digit tube row and set temperature on the lower row. A programmable timer covers 0 to 9999 minutes with fixed temperature operation, timing, and auto-stop. Additional functions include deviation correction, menu key lock, and power failure backup. Safety is provided by an over-temperature alarm.
Specifications (Common to All Configurations)
| Parameter | Specification |
|---|---|
| Model | DK-2000-IIIL |
| Heating Mode | Nature water convection |
| Temperature Range | RT+5°C to 100°C |
| Temperature Resolution | 0.1°C |
| Temperature Motion | ±0.5°C |
| Temperature Uniformity | ±1.0°C |
| Inner Chamber | Stainless steel |
| Outer Shell | Cold-rolled steel plate, chemical reagent resistant coating |
| Heater | Stainless steel heating tube |
| Temperature Controller | PID |
| Setting Mode | Touch button |
| Sensor | CU50 |
| Timer | 0–9999 min |
| Additional Functions | Deviation correction, menu key lock, power failure backup |
| Safety Device | Over temperature alarm |
| Shelf Number | 1 |
| Load per Rack | 5 kg |
| Brand | Faithful |
Available Variants
| Configuration | Volume | Inner Chamber W×L×H (mm) | Exterior Size W×L×H (mm) | Heater Power | Power Supply | Net / Gross Weight (kg) |
|---|---|---|---|---|---|---|
| 1 Hole | 3.4 L | 150×135×150 | 170×154×210 | 0.4 kW | AC220V / 1.8A | 3.3 / 4 |

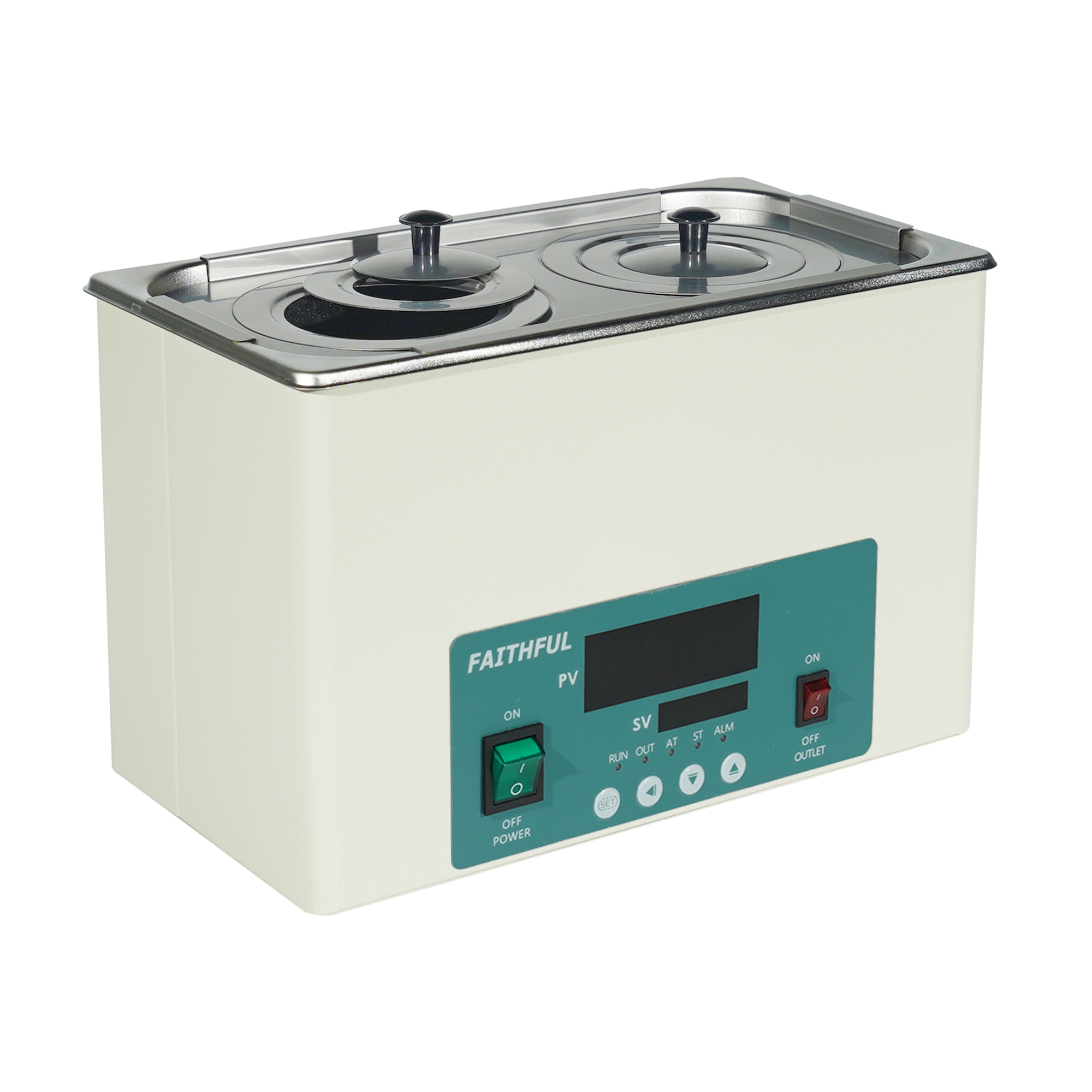

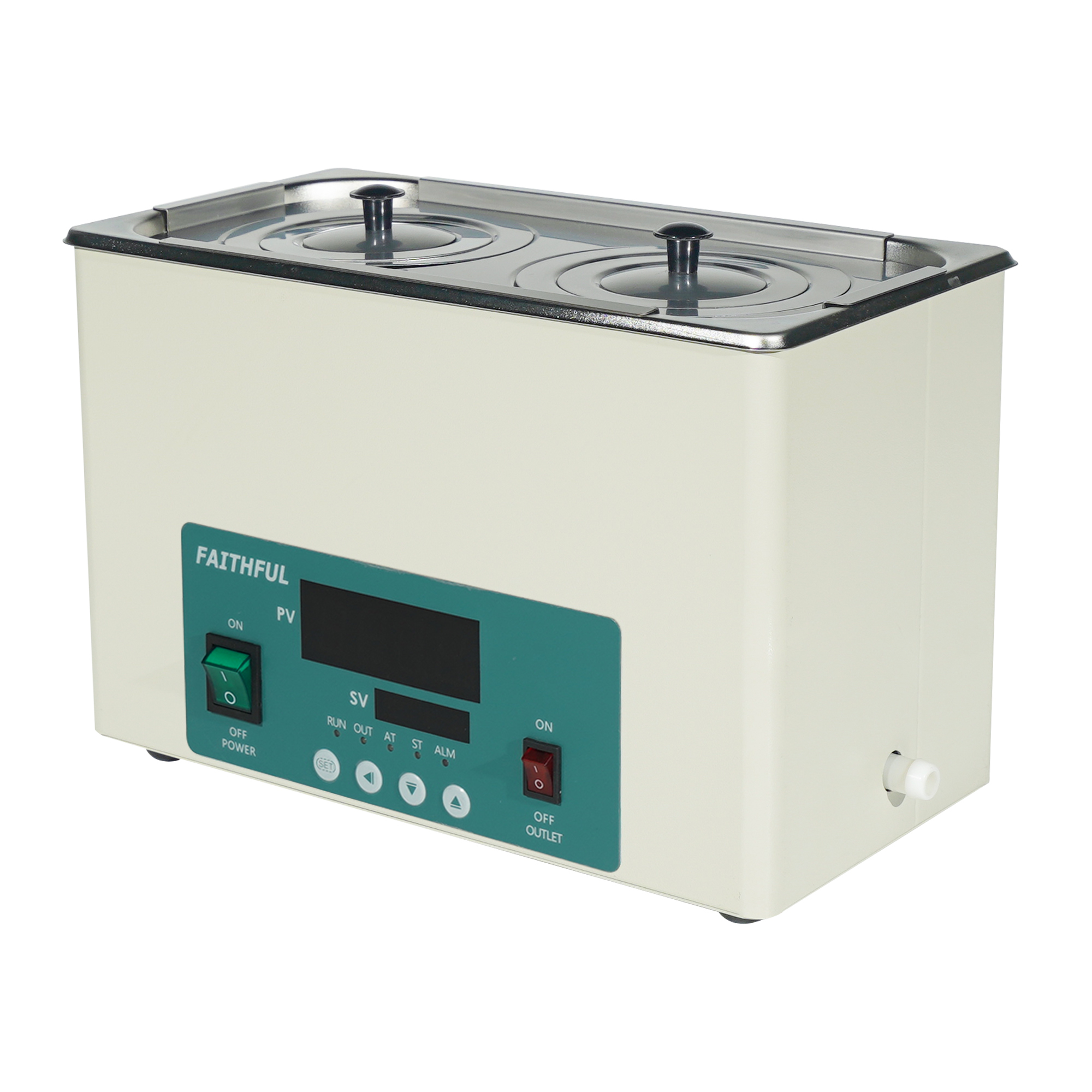

| 1 Row & 2 Holes | 6.1 L | 300×135×150 | 318×168×210 | 0.5 kW | AC220V / 2.3A | 4.5 / 5 |

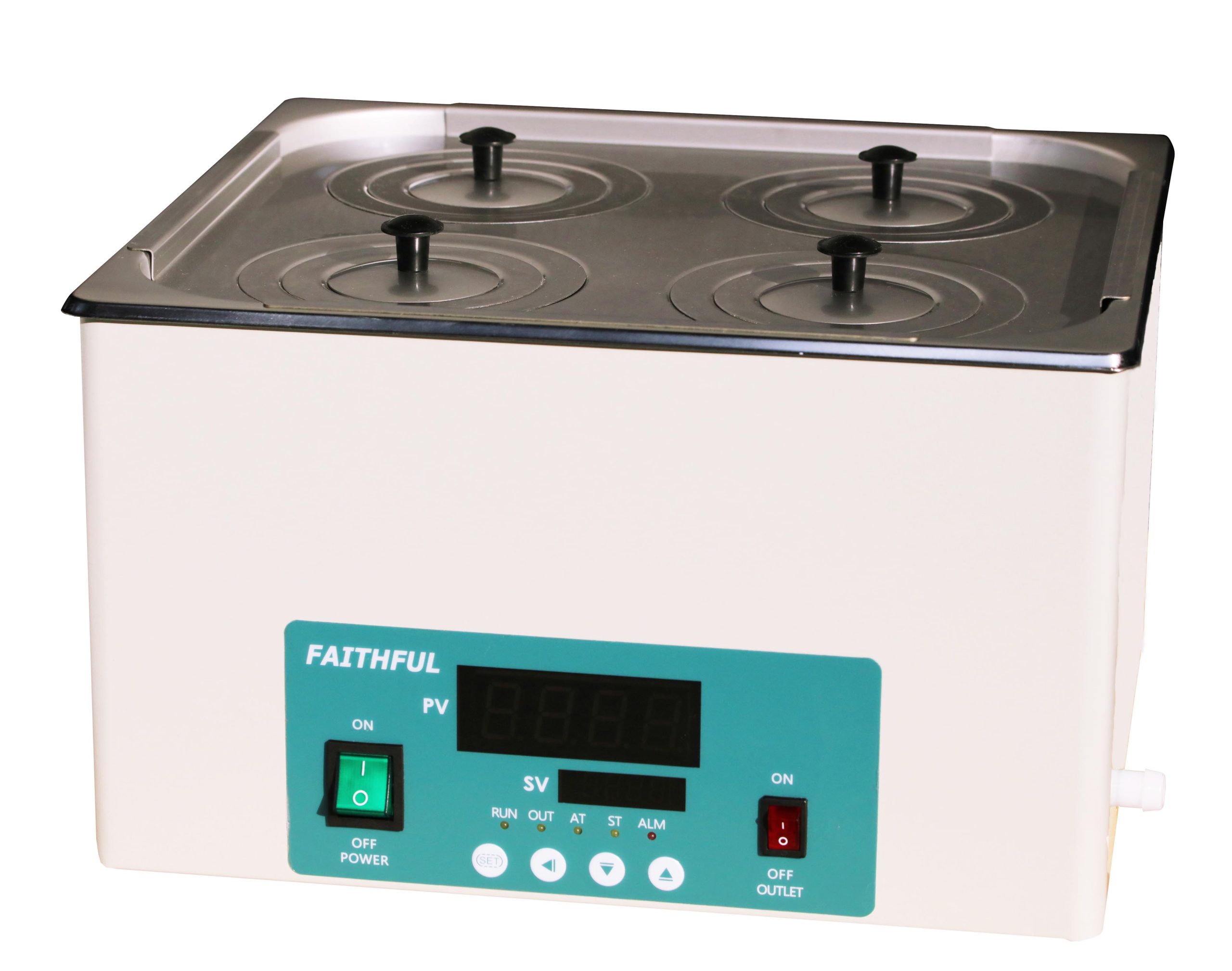

| 2 Rows & 4 Holes | 14.6 L | 325×300×150 | 350×318×210 | 1.0 kW | AC220V / 4.5A | 6 / 7 |

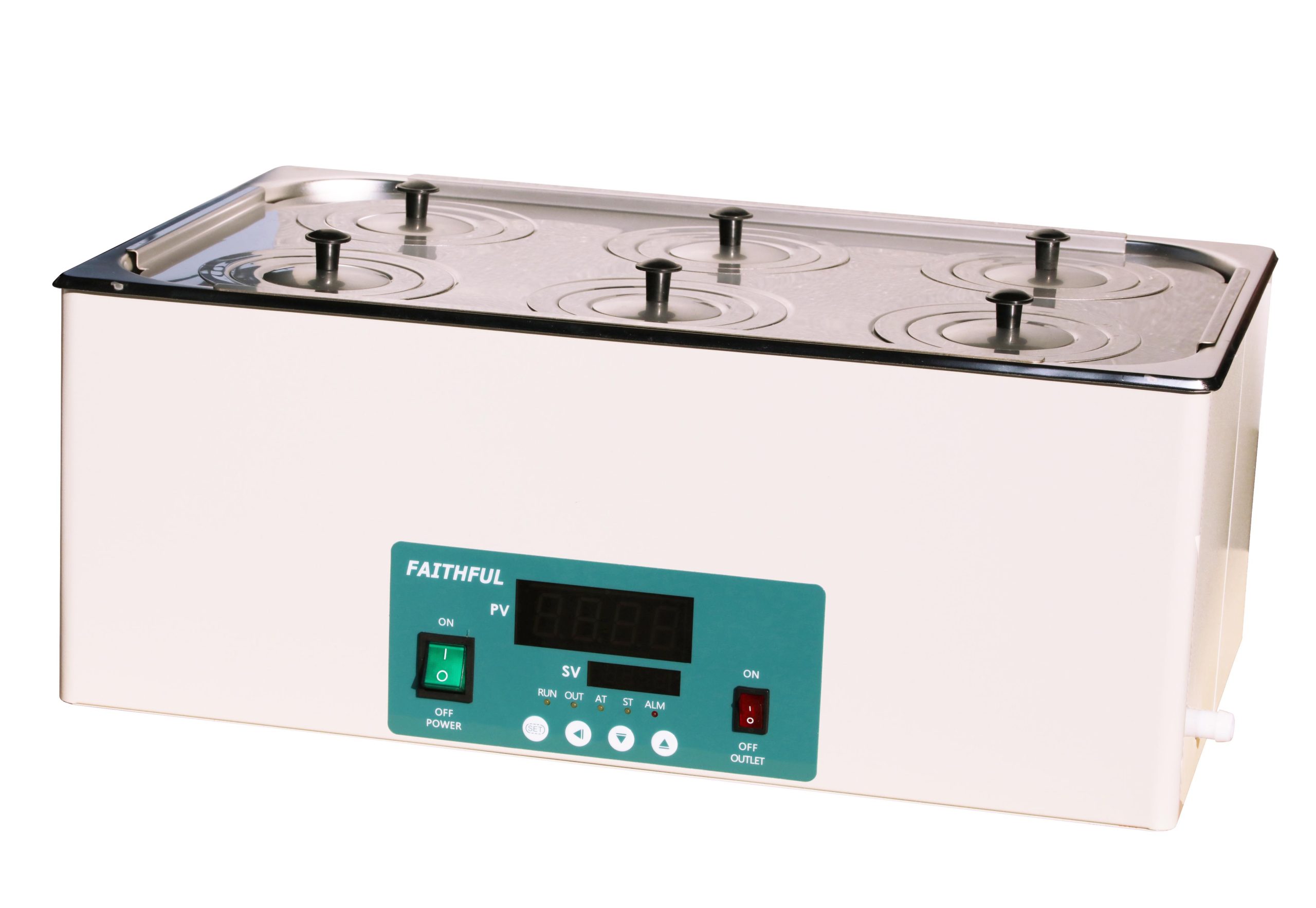

| 2 Rows & 6 Holes | 22.5 L | 500×300×150 | 524×322×210 | 1.5 kW | AC220V / 6.8A | 7.5 / 9 |
