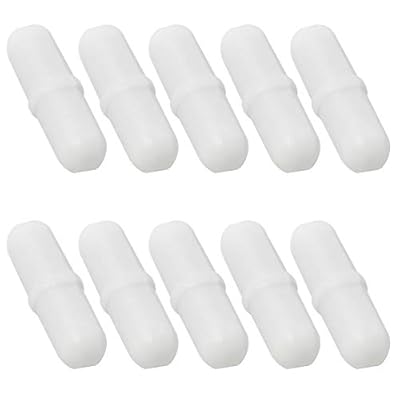

PTFE Magnetic Stir Bars, Ring Shape – China (PR-01 to PR-23)

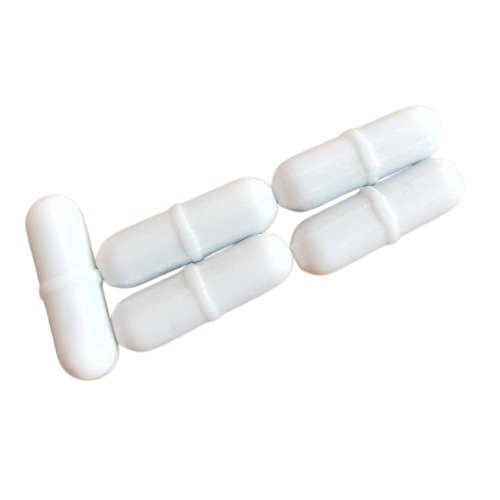

PTFE Magnetic Stir Bars, Ring Shape – China (PR-01 to PR-23) - Image 2

PTFE Magnetic Stir Bars, Ring Shape – China (PR-01 to PR-23)

₨3,699.00

SKU: N/A Categories: ,

Description

PTFE Magnetic Stir Bars, Ring Shape – China (PR-01 to PR-23)

PTFE ring-shaped magnetic stir bars are a widely used and versatile format in laboratory stirring applications. The distinctive ring or pivot ring around the centre of the bar serves a dual purpose — it improves rotational stability at varying speeds and makes the bar significantly easier to retrieve from vessels using a retrieval rod or magnet, reducing the risk of tipping or splashing when working with hazardous or sensitive liquids.

Manufactured entirely from high-purity PTFE, these stir bars are chemically inert and resistant to virtually all laboratory solvents, concentrated acids, strong alkalis, and oxidising agents. This makes them suitable for the most demanding chemical environments where metallic contamination from coated bars would be unacceptable. The smooth non-stick surface prevents sample adhesion, ensures clean and complete liquid drainage, and allows easy cleaning or autoclaving between experiments.

Available in 23 size variants ranging from 3 mm to 16 mm diameter and 8 mm to 100 mm length, these stir bars cover an exceptionally broad range of vessel sizes and volume requirements. They are compatible with all standard magnetic stirrer hotplates and are widely used in analytical chemistry, organic synthesis, pharmaceutical research, environmental testing, and quality control laboratories.

Specifications

Parameter Specification
Material PTFE (Polytetrafluoroethylene)
Shape Plain with Central Ring
Chemical Resistance Excellent — near universal
Temperature Resistance High
Surface Finish Smooth, non-stick
Compatibility Standard magnetic stirrer hotplates
Application Laboratory liquid stirring and mixing
Origin China

Available Variants

Product # Diameter Length
PR-01 3 mm 8 mm
PR-02 5 mm 10 mm
PR-03 5 mm 15 mm
PR-04 6 mm 12 mm
PR-05 6 mm 20 mm
PR-06 6 mm 25 mm
PR-07 6 mm 30 mm
PR-08 7 mm 25 mm
PR-09 7 mm 60 mm
PR-10 8 mm 16 mm
PR-11 8 mm 45 mm
PR-12 8 mm 48 mm
PR-13 9 mm 25 mm
PR-14 9 mm 50 mm
PR-15 9 mm 65 mm
PR-16 10 mm 60 mm
PR-17 10 mm 70 mm
PR-18 10 mm 80 mm
PR-19 10 mm 100 mm
PR-20 11 mm 37 mm
PR-21 11 mm 52 mm
PR-22 12 mm 55 mm
PR-23 16 mm 100 mm

Additional information

Diameter - Length

3 mm – 8 mm, 5 mm – 10 mm, 5 mm – 15 mm, 6 mm – 12 mm, 6 mm – 20 mm, 6 mm – 25 mm, 6 mm – 30 mm, 7 mm – 25 mm, 7 mm – 60 mm, 8 mm – 16 mm, 8 mm – 45 mm, 8 mm – 48 mm, 9 mm – 25 mm, 9 mm – 50 mm, 9 mm – 65 mm, 10 mm – 60 mm, 10 mm – 70 mm, 10 mm – 80 mm, 10 mm – 100 mm, 11 mm – 37 mm, 11 mm – 52 mm, 12 mm – 55 mm, 16 mm – 100 mm
