Description

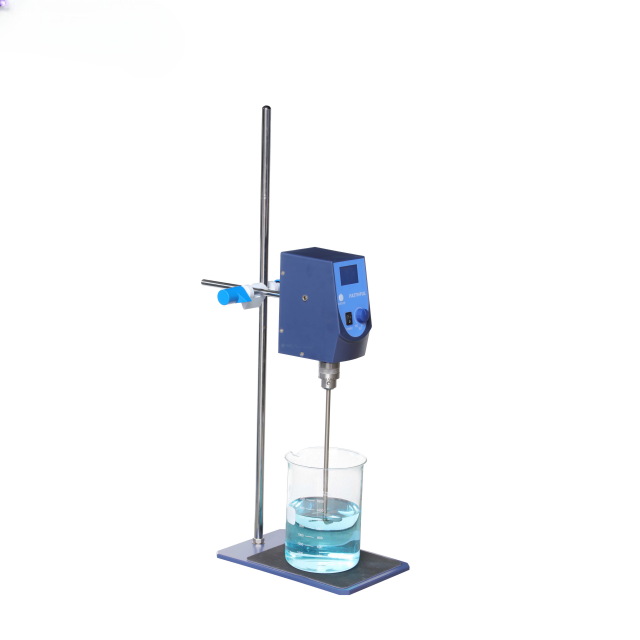

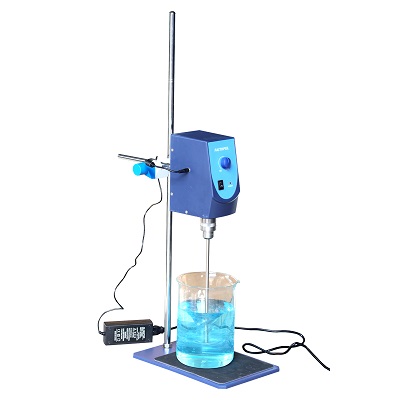

Overhead Stirrer, Digital LCD, Motor Drive – Faithful | SH-II-6 / SH-II-6C / SH-II-7C
The Faithful SH-II overhead stirrer series are designed for mechanical mixing of large-volume or high-viscosity samples that exceed the capability of magnetic stirrers. Suitable for mixing resins, adhesives, polymer solutions, cell suspensions, slurries, and other challenging media in beakers, tanks, or open vessels, these stirrers provide reliable continuous operation with a speed range of 100 to 2500 rpm.
The SH-II-6 uses analogue scale setting and display for straightforward operation without digital electronics. The SH-II-6C upgrades to a digital LCD display with timer function for timed mixing cycles and precise speed readout. The SH-II-7C increases maximum volume capacity to 40 L and maximum viscosity handling to 15,000 cP with a more powerful 0.08 kW motor, suitable for heavier mixing duties. All models support 100–240V power input for international compatibility.
Specifications
| Parameter | SH-II-6 | SH-II-6C | SH-II-7C |
|---|---|---|---|
| Max. Volume | 20 L | 20 L | 40 L |
| Speed Range | 100–2500 rpm | 100–2500 rpm | 100–2500 rpm |
| Minimum Revolution | 100 rpm | 100 rpm | 100 rpm |
| Max. Viscosity | 10,000 cP | 10,000 cP | 15,000 cP |
| Display | Scale | LCD Digital | LCD Digital |
| Setting Mode | Scale | Digital | Digital |
| Timer | No | Yes | Yes |
| Motor Power | 0.06 kW | 0.06 kW | 0.08 kW |
| Exterior | Plastic shell | Plastic shell | Plastic shell |
| Driving Mode | Motor | Motor | Motor |
| Continuous Operation | Yes | Yes | Yes |
| Plate Size (mm) | 200×300 | 200×300 | 200×300 |
| Plate Load | 50 kg | 50 kg | 50 kg |
| Exterior Size W×L×H (mm) | 115×95×240 | 115×95×240 | 115×95×240 |
| Power Supply | 100–240V | 100–240V | 100–240V |
| Net / Gross Weight (kg) | 7 / 8 | 7 / 8 | 7.5 / 8.5 |
| Brand | Faithful | Faithful | Faithful |
